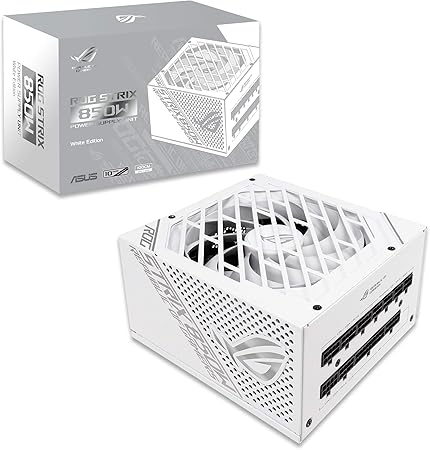

ASUS ROG Strix 850W Modular White
The ASUS ROG Strix 850W White Edition PSU offers a robust power supply with a fully modular design, allowing for efficient cable management. It features 0dB technology for silent operation, an 80 Plus Gold certification for energy efficiency, and is equipped with a 135 mm Axial-tech fan for cooling.
Popularity: Low
Specifications:
Model: ASUS ROG Strix 850W Modular White
Watt: 850.0 W
ATX Version: ATX 2.52
Modular Design:
Dimensions: 16 x 15 x 8.6 Centimeter
Weight: 3.42
Power Efficiency Rating: 80Plus Gold
Cooling System: 135 mm Fan
MTBF (Hours): >120,000 hrs @ 25°C
Connectors: MB 24/20-pin x 1, CPU 4+4-pin x 2, PCI-E 6+2-pin x 6, SATA x 8, PERIPHERAL x 6
Protection Features: OPP/OVP/UVP/SCP/OCP/OTP
Safety Certifications: ROHS
Zero RPM Mode: Supported. The fan shuts off entirely when the PSU is under certain load
Manufacturer Page: Link
Review
The ASUS ROG Strix 850W Modular White Edition PSU is an impressive addition to ASUS's line-up. Known for its premium aesthetic and robust performance, this power supply offers an enticing package for those in search of quality and reliability. The White Edition's aesthetic with matte white and silver accents not only enhances a PC's visual appeal but also adds a sophisticated touch to any setup, especially when paired with other white components.
Key Features
- 80 Plus Gold Certification for high energy efficiency
- Fully modular design for enhanced cable management
- 135 mm Axial-tech fan for superior cooling
- 0dB Technology for silent operation under light load
- Comprehensive protection features: OPP/OVP/UVP/SCP/OCP/OTP
- 10-year warranty for peace of mind
The fully modular cabling is a standout feature, allowing users to customize and streamline their cable management, which is crucial for both aesthetics and airflow. This is especially beneficial in maintaining a clutter-free build, enhancing both cooling efficiency and aesthetics. The cabling is further noted for its distinctive “rubber” sheath, making it extremely flexible and easy to route, a practical advantage that distinguishes it from conventional cables (hwcooling.net).
Performance and Efficiency
Harnessing 850W of power, the ROG Strix 850G White delivers enough juice to power even the most demanding gaming rigs, including configurations with high-end CPUs like the Intel Core i9-13900K and GPUs such as the GeForce RTX 4090 (TechPowerUp). The single +12V rail design supports a permanent load capacity of 70.8 A, which is significant for such expansive setups.
The unit's 80 Plus Gold efficiency ensures superb energy management, backing the ASUS claim for low power consumption and operational costs (ASUS ROG).
Cooling and Acoustics
The cooling mechanism, featuring a 135 mm fan complemented by 0dB technology, allows the PSU to operate silently under low to moderate loads by turning off the fan entirely. The assurance of quiet operation is bolstered by ASUS's psychoacoustic optimizations, which work in harmony with the grille design, though specific noise frequencies await detailed review (Akinformatica).
Design and Build Quality
The sleek design extends to the PSU's robust build quality, featuring heavy perforations and a sturdy grille that accentuates the front and sides. This combination not only ensures durability but also hints at meticulous engineering to support optimal heat dissipation and structural integrity (ASUS ROG).
Conclusion
The ASUS ROG Strix 850W Modular White Edition strikes a chord with PC builders and gamers looking for a PSU that combines performance with aesthetics. With its high efficiency, silent operation, and a robust 10-year warranty, it is an excellent choice for those who value both style and substance. Customer feedback reflects satisfaction with the power supply's performance and support, making it a sound investment for any high-performance setup (Akinformatica).
