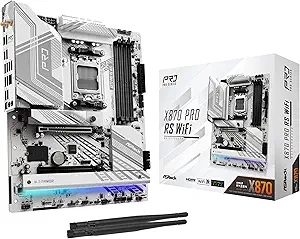

ASRock X870 Pro RS WiFi ATX DDR5
The ASRock X870 Pro RS WiFi is an ATX motherboard compatible with AMD Socket AM5 Ryzen processors, supporting dual-channel DDR5 memory up to 8000 MHz and a maximum capacity of 256 GB. It features advanced connectivity options including USB4, 802.11be Wi-Fi 7, and multiple M.2 slots for high-speed storage solutions.
Popularity: Low
Specifications:
Model: ASRock X870 Pro RS WiFi ATX DDR5
Chipset: AMD X870
Form Factor: ATX Form Factor: 12.0-in x 9.6-in
CPU Compatibility: AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
Memory Support: Dual Channel DDR5 Memory Technology, Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC), 4 x DDR5 DIMM Slots
Maximum Memory Capacity: 256GB
Memory Speed: DDR5 up to 8000+(OC)
Memory Features: Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
RAM Slots: 4.0
Graphics Output: Integrated AMD RDNA™ graphics, 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
Expansion Slots: 1 x PCIe 5.0 x16 Slot, 1 x PCIe 4.0 x16 Slot, 1 x M.2 Socket (Key E), supports AMD CrossFire™
Storage Options: 1 x Blazing M.2 Socket (M2_1, Key M), 1 x Hyper M.2 Socket (M2_2, Key M), 1 x Ultra M.2 Socket (M2_3, Key M), 2 x SATA3 6.0 Gb/s Connectors
Ethernet: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s, Dragon RTL8125BG
Wireless Bluetooth: 802.11be 2x2 Wi-Fi 7 Module, Supports Bluetooth 5.4
USB Ports (Rear): 2 x USB4 Type-C (40 Gb/s), 2 x USB 3.2 Gen1 Type-A, 6 x USB 2.0
USB Ports (Front): 1 x USB 3.2 Gen2x2 Type-C, 4 x USB 3.2 Gen1 Type-A, 2 x USB 2.0
Audio: 7.1 CH HD Audio with Content Protection, Realtek ALC1220 Audio Codec
Back Panel I/O Ports: 2 x Antenna Ports, 1 x HDMI Port, 1 x Optical SPDIF Out Port, 2 x USB4 Type-C Ports, 4 x USB 3.2 Gen1 Type-A Ports, 6 x USB 2.0 Ports, 1 x RJ-45 LAN Port, 1 x Line Out Jack, 1 x Microphone Input Jack
Internal I/O Connectors: 1 x Thermistor Cable Header, 1 x Power LED and Speaker Header, 1 x RGB LED Header, 3 x Addressable LED Headers, 2 x CPU Fan Connectors, 4 x Chassis Fan Connectors, 1 x AIO Pump Fan Connector, 1 x 24 pin ATX Power Connector, 2 x 8 pin 12V Power Connectors, 1 x Front Panel Audio Connector, 2 x USB 2.0 Headers, 1 x USB 3.2 Gen1 Header, 1 x Front Panel Type C USB 3.2 Gen2x2 Header
Cooling Headers: 2 x CPU Fan Connectors, 4 x Chassis Fan Connectors, 1 x AIO Pump Fan Connector
Power Connectors: 1 x 24 pin ATX Power Connector, 2 x 8 pin 12V Power Connectors
BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
